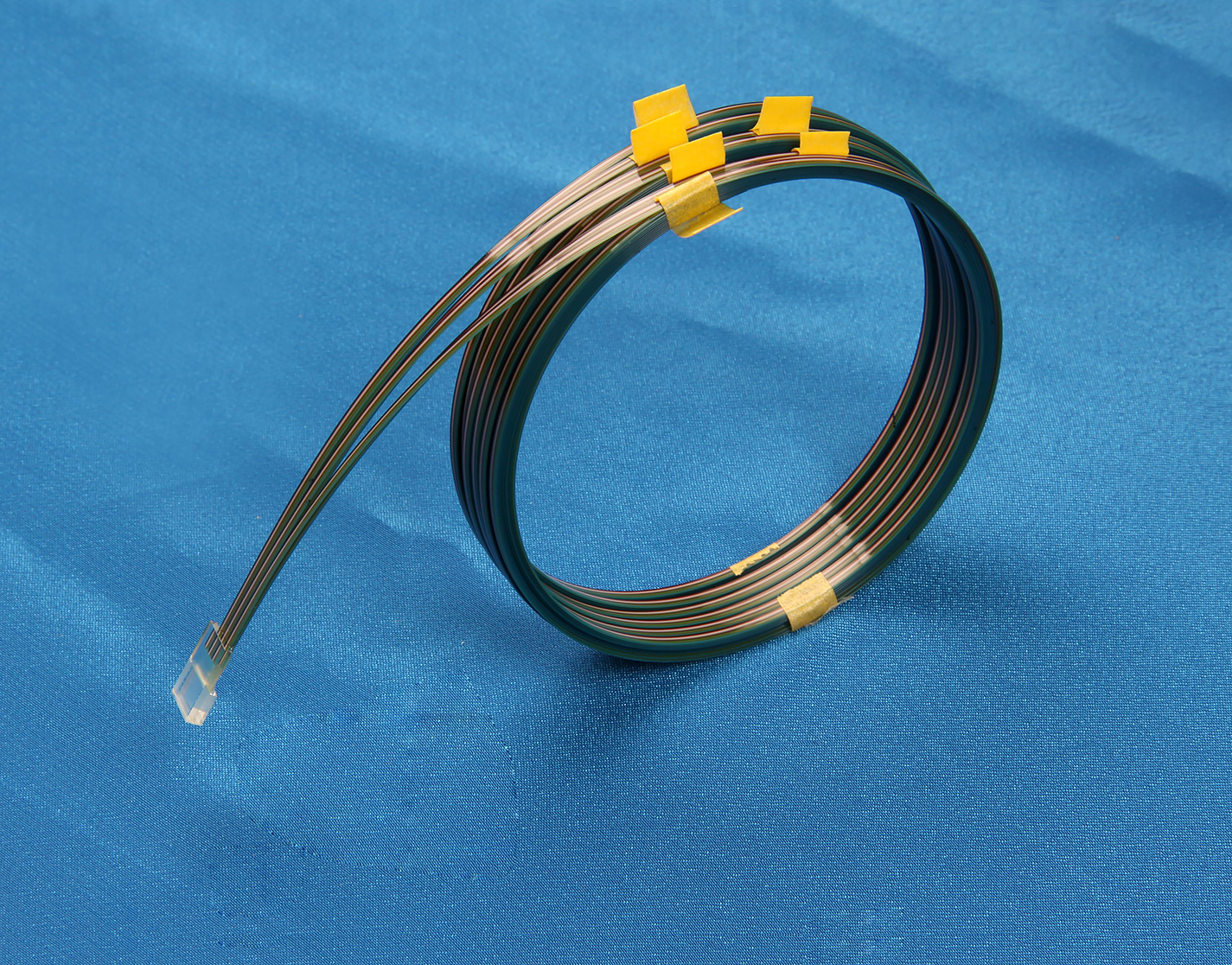

常规1-128通道
光通汇联有限公司供应高质量光纤阵列系列产品，石英和耐热玻璃是其主要材料。抛光角度可根据客户需要选择：有0度，8度和12度 42.5度，研磨光纤或端面。设备检验每批货均符合高精度设计。
特性
1. 高精度的纤芯间距
2. 多达128通道光纤阵列
3. 高稳定性和可靠性
4. 可定制
5.高速光模块，VESSCEL
详述
| Material | Quartz, Pyrex or Borosilicate |
| Channel Count | 1. 4. 8. 12. 16. 24. 32. 48. 64. 128 |
| Core Spacing(um) | 250 ± 0.5 or 127 ± 0.5 |
| Fiber Array Length(m) | 2.0+0.1 |
| Polishing Angle (°) | 0 ± 0.3°或 8 ± 0.3°45 ± 0.5° |
| Polishing Flatness | <fringes@633nm |
| Working Temperature (℃) | -40 to 85 |
| Channel Count | Core Spacing (um) | L (mm) | W (mm) | H (mm) | H (mm) |
| 1 | - | 7.5 | 2.5 | 2.5 | 1.5 |
| 4 | 250 | 9.5 | 2.5 | 2.5 | 1.5 |
| 8 | 127 | 11.5 | 2.5 | 2.5 | 1.5 |
| 8 | 250 | 9.5 | 3.5 | 2.5 | 1.5 |
| 16 | 127 | 9.5 | 3.5 | 2.5 | 1.5 |
| 32 | 250 | 11.5 | 5.7 | 2.5 | 1.5 |
| 48 | 127 | 11.5 | 9 | 2.5 | 1.5 |
| 64 | 127 | 11.5 | 11 | 2.5 | 1.5 |
应用
1.密集波分复用器部件
2.微机电系统
3.光开关
4.光分路器
5.阵列波导光栅
订购信息(单通道)
| TFA- | XX- | X- | XX- | X- | X- | X |
| G=GTLINK | Channels Count | Material | Output fiber type | Fiber Type | Fiber Colour | Polishing Angle |
| F=Fiber | 01=1channel | Q=Quartz | 12=1.2m | B=250um Nude Fiber | C=Colorless | A=+8° |
| A=Array | P=Pyrex | 15=1.5m | L=900um Loose Tube | W=White | B=-8° | |
| T=900um Tight Tube | B=Blue | C=0° | ||||
| X=According to customer | X=According to customer |
订购资料(更多频道)
| TFA- | XX- | X- | XX- | X- | X- | X |
| T=TYKO | Channel Count | Material | Fiber Spacing | Fiber Array Length | Fiber Array Color | Polishing Angle |
| F=Fiber | 04=4Channels | Q=Quartz | 25=250um | 12=1.2m | S=TYKO Standards | A=+8° |
| A=Array | 08=8Channels | P=Pyrex | 12=127um | 15=1.5m | X=According to customer | B=-8° |
| 16=16 Channels | XX=according to customer | C=0° | ||||
